Custom PP Plastic Pallet Boxes With Dividers For Auto Parts Custom PP Plastic Pallet Boxes With Dividers For Auto Parts

Plastic Pallet Boxes are a versatile ‘sleeve pack’ system consisting of 3 parts: Lid, Sleeve, and Pallet, designed to store and transport more products in less space. Color: Grey, Blue, Black, or Custom Size: 800*600 1150*985 1100*1100 1200*800, etc Height: Any custom Design: ODM/OEM Material: PP+HDPE Delivery: 7-14 days Price: Factory Direct Sales Number of folds: More than 50000 times

Quantity:
Share this:
Product Description

Custom Plastic pallet boxes with dividers for Auto parts

Plastic pallet boxes: Ideal logistics and transportation partner

Plastic pallet boxes are also called pallet sleeve boxes, corrugated plastic gaylord containers, foldable pallet boxes, plastic gaylord boxes, collapsible pallet containers, etc. It consists of three parts, namely lid, pallet, and sleeve. The sleeve has a honeycomb hollow structure and is made of polypropylene. The lid and pallet are made of high-density HDPE. This pallet sleeve box is uniquely designed and foldable for easy storage and transportation. Its honeycomb structure provides excellent compression resistance, ensuring the safe transport of items.






How to assemble plastic pallet boxes

  1. Unfold: Gently pull apart the sides of the sleeve to expand it to the desired size. During the unfolding process, please pay attention to the buckle positions on each side to ensure correct installation.

  2. Assemble the pallet: The pallet is located at the bottom of the foldable pallet boxes and plays a supporting role. Place the sleeve on the pallet, making sure the pallet matches the dimensions of the sleeve. Then, snap the edge of the sleeve into the groove on the edge of the pallet to complete the pallet assembly.

  3. Cover assembly: Place the cover on top of the plastic pallet sleeve boxes, making sure the cover matches the size of the sleeve. Then, snap the edge of the sleeve into the groove on the edge of the lid to complete the lid assembly.

  4. Locking: All sides are firmly locked through the built-in locking mechanism. Before locking, make sure all sides are fully extended and that the buckles are inserted correctly. Simply press the buckle to lock it.


Advantages of plastic gaylord boxes

  • Foldable design: After use, the plastic pallet boxes can be easily folded to save storage space.

  • Strong durability: PP material has excellent weather resistance and wear resistance, can withstand various harsh environments, and ensures long-term use.

  • Waterproof performance: The surface of folding plastic pallet boxes is treated with waterproof material, which effectively prevents moisture penetration and keeps items inside the box dry.

  • Light and easy to carry: PP honeycomb panel pallet boxes are light and strong, making them easy to carry and load.

  • Environmentally friendly materials: PP materials can be recycled and reused to reduce the impact on the environment.

  • Wide range of application scenarios: suitable for auto parts turnover, logistics and transportation, product packaging, etc. Whether it is large cargo or small items, PP honeycomb plastic pallet boxes can provide safe and reliable transportation protection.

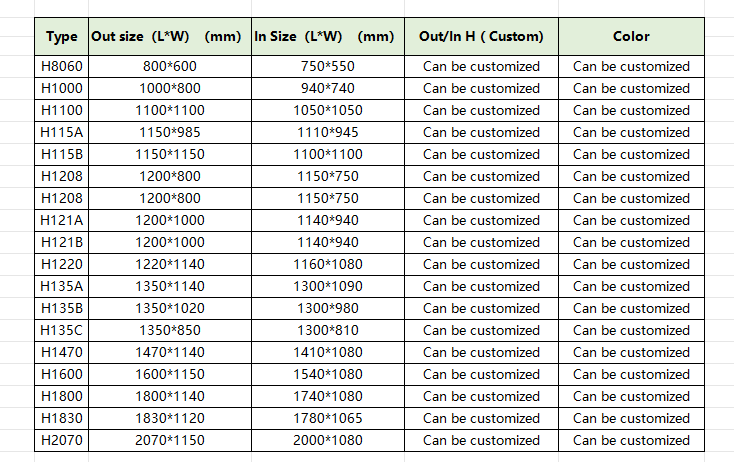

Parameters of plastic gaylord pallet boxes/containers

Type
color
In Size(L*W)
Out Size(L*W)(mm)
Out/In H ( Custom)
HY-10408
Custom
960*770mm
1040*850mm
860/685mm
HY-11201
Custom
1040*1040mm
1120*1120mm
860/685mm
HY-11401
Custom
1060*1060mm
1140*1140mm
860/685mm
HY-12001
Custom
1120*930mm
1200*1000mm
860/685mm
HY-12201
Custom
1140*1070mm
1220*1150mm
860/685mm
HY-12408
Custom
1160*760mm
1240*840mm
860/685mm
HY-12401
Custom
1160*960mm
1240*1040mm
860/685mm
HY-14701
Custom
1370*1070mm
1470*1150mm
760/585mm

 Detail:


Production Video

The uses of Plastic Pallets are extensive and can be used in most transport and storage situations. Typical uses for Plastic Pallets include; transporting loads, internationally shipping items, stacking and storing goods and any other transport manoeuvring jobs. They can be used to transport small items such as electronics, Auto parts (such as car lights, bumpers, rearview mirrors, etc.) to pack a lot in to fill a Pallet.
